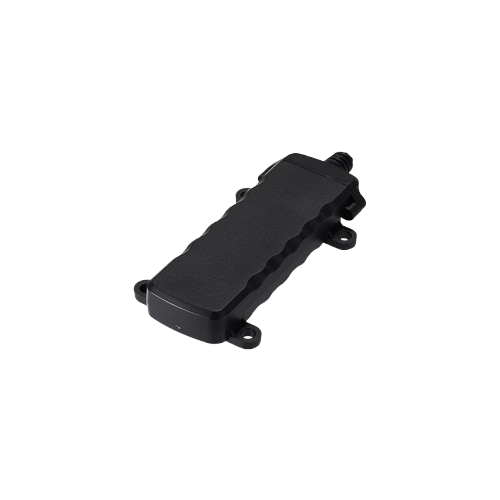

Localizador GPS de activos Suntech ST710 (SigFox)

Características Suntech ST710 (SigFox):

Caja negra
Sigfox
Posicionamiento Wi-Fi

Soportado en Wialon:

Sensores Digitales
Comunicación vía TCP

Para que el sistema de rastreo Wialon identifique los datos de Suntech ST710 (SigFox) en el diálogo de configuración de la unidad, indique los siguientes datos :

Tipo de dispositivo:	Suntech ST710 (SigFox)
ID único:	custom

Indique los siguientes parámetros en el programa de configuración o en la configuración Suntech ST710 (SigFox) para utilizarlos en Wialon Hosting :

Puerto del servidor:

21698

En el centro de servicio Wialon se utilizan 621 unidades Suntech ST710 (SigFox) — es 0.46% de la cantidad total de dispositivos Rastreador de activos conectados.

La gráfica representa la cantidad de conexiones en el centro de servicio Wialon en los últimos 30 días:

Nombre del parámetro	Descripción	Unidades de medida
msg_type	Message type: 17 - Event - turn on 18 - Event - turn off 19 - Event - SOS button 20 - Event - Hall sensor triggered 21 - Event - Hall sensor absent 22 - Event - Movement 23 - Event - Starting battery charge 24 - Event - Stopped battery charge 25 - Event - Entering geofence 26 - Event - Leaving geofence 27 - Event - Entering Wi-Fi fence 28 - Event - Leaving Wi-Fi fence 29 - Event - GPS jammer 30 - Event - Low battery 32 - Tracking 80 - Event - Driving mode off 81 - Event - Driving mode on 82 - Event - Temperature below Low limit 83 - Event - Temperature at normal level 84 - Event - Temperature above High limit 85 - Event - Entering Polygonal Fence 86 - Event - Leaving Polygonal Fence 87 - Event - SOS button release 88 - Event - Input 1 on 89 - Event - Input 1 off 90 - Event - Input 2 on 91 - Event - Input 2 off 92 - Event - Output 1 on 93 - Event - Output 1 off 94 - Event - Output 2 on 95 - Event - Output 2 off 96 - Event - Movement on 97 - Event - Movement off 98 - Event - Main voltage source connected 99 - Event - Main voltage source disconnected 100 - Event - Speed Limit exceeded 101 - Event - Ignition input on 102 - Event - Ignition input off 103 - Event - 1-Wire temperature event 104 - Event - Start working hours 105 - Event - Stop working hours
temp	Temperature
voltage	Battery voltage	V
battery	Battery level	%
wifi_mac	Wi-F Mac address
rssi	Received signal strenght indication
nic	Network Interface Card
ax	Accelerometer. X axis
ay	Accelerometer. Y axis
az	Accelerometer. Z axis
fence_num	Fence number
hourmeter	Number of minutes in driving state	min
odometer	Distance travelled	km
partial_hmeter	Driving state in the last ignition cycle	min
partial_odo	Distance travelled in the last ignition cycle	km
in1_cntr	Number of transitions of input 1
in2_cntr	Number of transition of input 2
1wire_X	Temperature of 1-Wire sensor X	°C

Suntech ST710 (SigFox) transmits data to SigFox platform. After that data are transmitted to Wialon. Please read the following document to make appropriate settings in SigFox platform:Instruction on configuring BATCH_URL and URL callbacks in SigFox platform

Please note that server port should be as on information tab.
