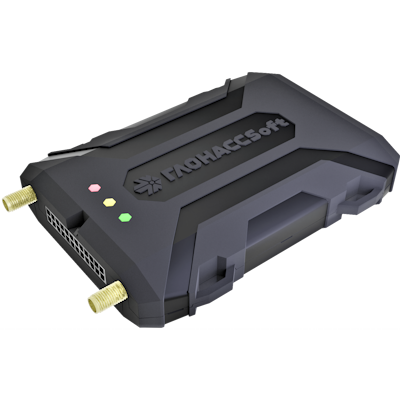

UMKa300

UMKa300
Manufacturer: GLONASSsoft
Forum Discussion
Discontinued

Number of units

394
Online
1215
Total
Features UMKa300:
  • Blackbox
  • Dual SIM
  • GLONASS support
Supported in Wialon:
  • Accelerometer
  • ADC sensors
  • Remote management via GPRS
  • Digital sensors
  • LBS
  • Remote management via SMS
  • Communication via TCP

The following data should also be added to UMKa300 unit properties section of Wialon GPS tracking software :

Device type: UMKa300
Unique ID: imei

Specify the following parameters in configuration software or configuration UMKa300 for use in Wialon Hosting :

Server port: 21336

1215 units of UMKa300 device type are connected to Wialon Data Center. This represents 0.05% of all AVL Hardware connected.

Below chart represents the dynamic of connections in the last 30 days:

Parameter name Description Units
status Terminal status
sats_gps GPS satellites
sats_glonass GLONASS satellites
hdop Horizontal dilution of precision
pwr_ext Voltage of external power supply V
pwr_akb Power supply internal battery V
count1 Value of the counter DIN0 (IN2)
count2 Value of the counter DIN1 (IN3)
adc1 Value of the analog sensor AIN0 (IN0) V
adc2 Value of the analog sensor AIN1 (IN1) V
fuel1 Value level of 0 fuel sensor
fuel2 Value level of 1 fuel sensor
fuel3 Value level of 2 fuel sensor
fuel4 Value level of 3 fuel sensor
fuel5 Value level of 4 fuel sensor
fuel6 Value level of 5 fuel sensor
fuel7 Value level of 6 fuel sensor
temp1 Value of temperature 0 sensor. (sensor built into the device) °C
temp2 Value of temperature 1 sensor °C
temp3 Value of temperature 2 sensor °C
temp4 Value of temperature 3 sensor °C
temp5 Value of temperature 4 sensor °C
temp6 Value of temperature 5 sensor °C
temp7 Value of temperature 6 sensor °C
ow1 Value of temperature 0 sensor DS18B20 °C
ow2 Value of temperature 1 sensor DS18B20 °C
ow3 Value of temperature 2 sensor DS18B20 °C
ow4 Value of temperature 3 sensor DS18B20 °C
avl_driver Number of key iButton
