Bharat 101

Bharat 101
Manufacturer: iTriangle
Forum Discussion

Number of units

14
Online
21
Total
Features Bharat 101:
  • Blackbox
Supported in Wialon:
  • ADC sensors
  • Digital sensors
  • LBS
  • Communication via TCP

The following data should also be added to Bharat 101 unit properties section of Wialon GPS tracking software :

Device type: Bharat 101
Unique ID: imei

Specify the following parameters in configuration software or configuration Bharat 101 for use in Wialon Hosting :

Server port: 21793

21 units of Bharat 101 device type are connected to Wialon Data Center. This represents 0.02% of all Asset trackers connected.

Below chart represents the dynamic of connections in the last 30 days:

Parameter name Description Units
vendor_id Vendor identification header
vehicle_reg_num

Mapped vehicle registration number

fw_version

Indicates Firmware Version running in the device

prot_version

Communication protocol identifier

packet_type Packet type
packet_status Packet status
mess_id Message ID
gps_fix

1 = GPS fix Valid
0 = GPS fix Invalid

pdop Positional dilution of precision
hdop Horizontal dilution of precision
operator_name Name of network operator
ign Ignition status
battery_status

0=Vehicle Battery disconnected
1=Vehicle Battery reconnected

pwr_ext

Main input voltage

V
pwr_int

Internal battery voltage

V
emergency_status

Emergency status

tamper_alert

Tamper Alert:
C = Cover Closed
O= Cover Opened

frame_num

Sequence number of the messages

delta_distance Distance in meters
bat_percent

Indication for the internal battery charge in percentage

%
low_bat_percent

Indication for the low battery alert generated in percentage

%
memory_percent#

Indicates flash memory used by server # in percentage

%
ign_on_interval

Ignition ON Interval time in seconds

sec
ign_off_interval

Ignition OFF Interval time in seconds

sec
distance

Distance calculated from previous GPS data in meters

m
provider

G - Fine GPS
N - Coarse GPS or data from the network

reply_num

The mobile number to which test response needs to be sent.

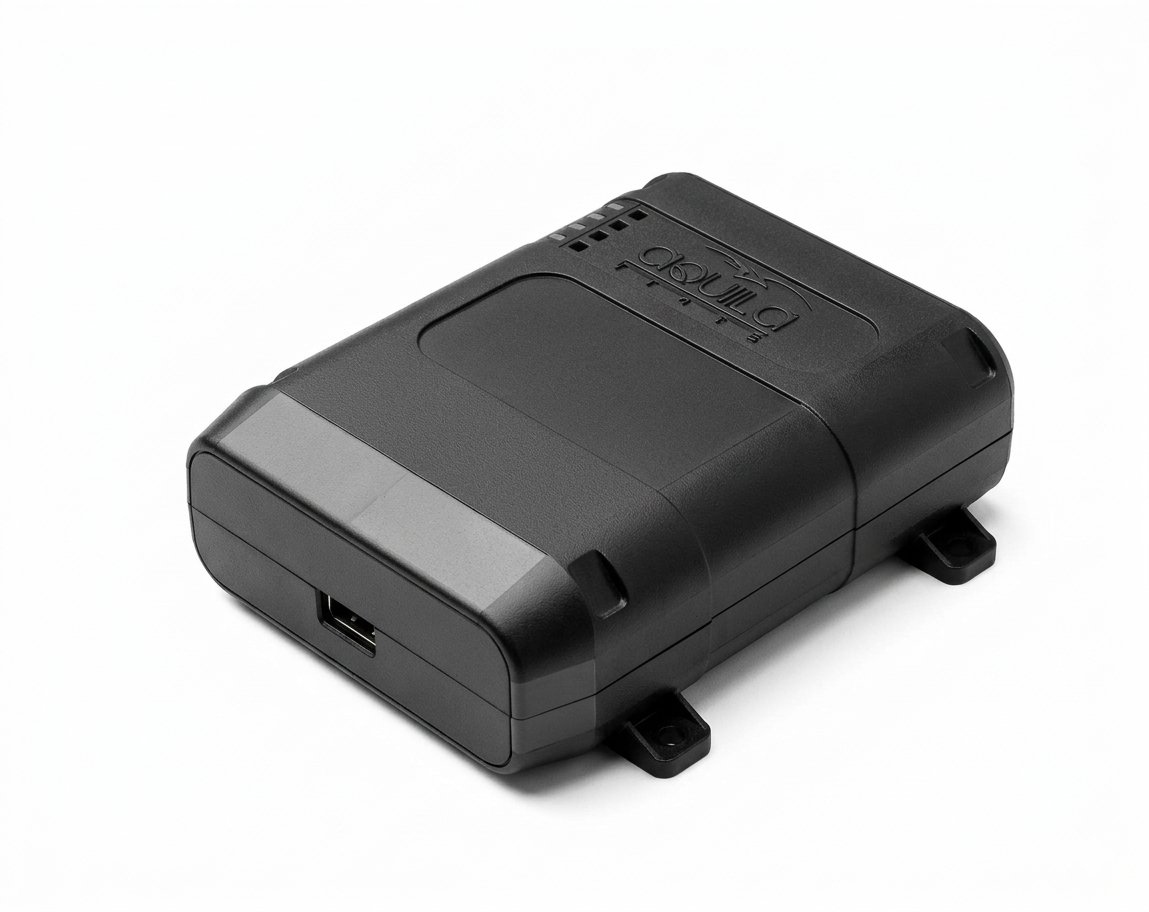

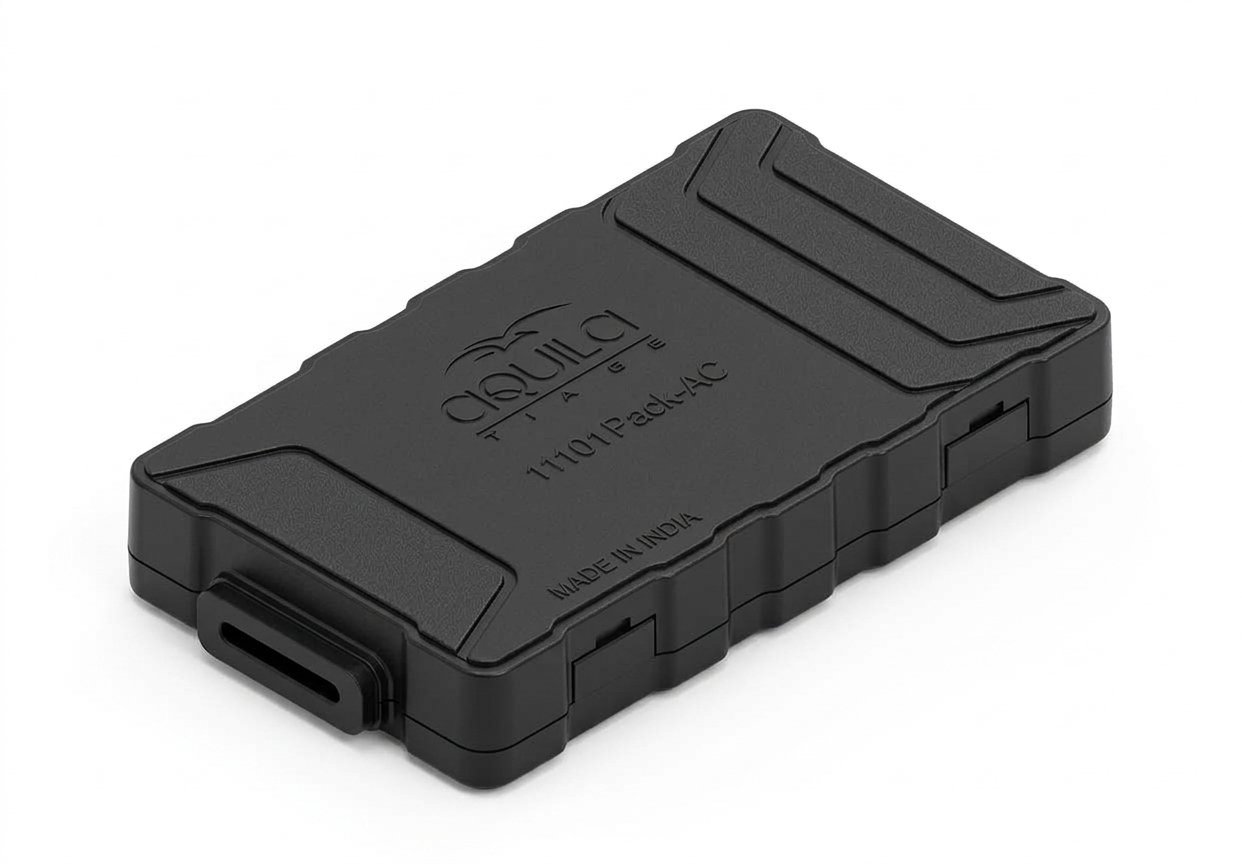

More devices from the manufacturer
