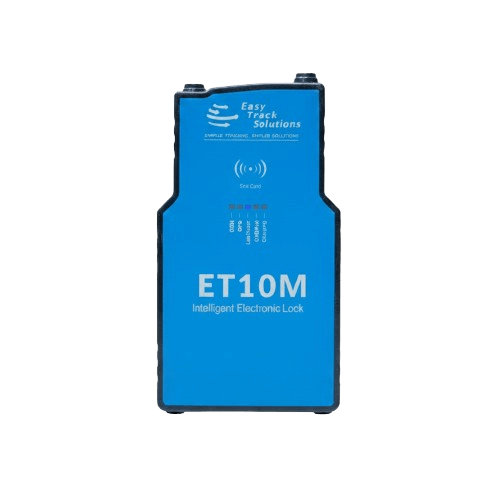

ET10M

ET10M
Forum Discussion

Number of units

1
Online
1
Total
Features ET10M:
  • 3G
  • Blackbox
Supported in Wialon:
  • Remote management via GPRS
  • Communication via TCP

The following data should also be added to ET10M unit properties section of Wialon GPS tracking software :

Device type: ET10M
Unique ID: imei

Specify the following parameters in configuration software or configuration ET10M for use in Wialon Hosting :

Server port: 22876

1 units of ET10M device type are connected to Wialon Data Center. This represents 0% of all Asset trackers connected.

Below chart represents the dynamic of connections in the last 30 days:

Parameter name Description Units
device_id MDeviceID Master Device Terminal/Serial Numbe
device_type

DeviceType Type of device (1 means Master, 0 means slave

seal_tempered

SealTempered 1 means Seal tempered, otherwise 0

index

Index Unique identifier of a message

slave_{N}_device_id

SDeviceId Slave Device id

slave_{N}_power

SPower Power indicating the current power value of the Slave

device

slave_{N}_lock_cut_off

SLockCutOff S means Slave, 1 means lock rope cut alarm,

otherwise, 0

slave_{N}_lock_open

SLockOpen S means Slave, 1 means unlock alarm, otherwise, 0.

slave_{N}_un_cover_back

SUnCoverBack S means Slave, 1 means back cap open alarm.

Otherwise, 0

slave_{N}_cover_status

SCoverStatus Slave Back cap status. 1 means closing status.

Otherwise, 0.

slave_{N}_time_out

STimeOut Slave does not report to master for at least 3 Minutes;

1 means slave has not reported for atleast 3 minutes,

otherwise 0

card_no

CardNo The number of the SmartCard which is used to do the

action of open/close on the device.

fence_alarm

FenceAlarm 1 means out of fence, otherwise 0

low_power

1 means low power alarm. Otherwise, 0

power

the current power value of the Master device
