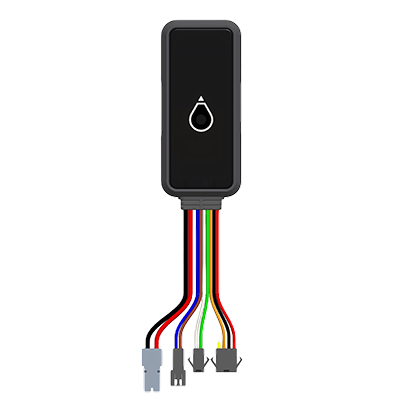

GPS tracker Eelink TK418 | Integrated with Wialon

Features Eelink TK418:

4G/LTE
Blackbox
GLONASS support

The following data should also be added to Eelink TK418 unit properties section of Wialon GPS tracking software :

Device type:	Eelink TK418
Unique ID:	imei

Specify the following parameters in configuration software or configuration Eelink TK418 for use in Wialon Hosting :

Server port:

22015

1246 units of Eelink TK418 device type are connected to Wialon Data Center. This represents 0.05% of all AVL Hardware connected.

Below chart represents the dynamic of connections in the last 30 days:

Parameter name	Description	Units
report_type	1 - ACC On 2 - ACC Off 3 - DINx changed
mcc	Mobile country code
mnc	Mobile network code
lac	Location area code
cell_id	Cell tower ID
dev_status	Bit 0 1: GPS is fixed 0: GPS is not fixed Bit 1 1: Device is designed for car 0: Device is not designed for car Bit 2 1: Car engine is fired (only valid when bit 1 is 1) 0: Car engine is not fired Bit 3 1: Accelerometer is supported 0: No accelerometer Bit 4 1: The motion-warning is activated (only valid when bit 3 is 1) 0: The motion-warning is deactivated Bit 5 1: Relay control is supported 0: No relay control Bit 6 1: The relay control is triggered (only valid when bit 5 is 1) 0: The relay control is not triggered Bit 7 1: External charging is supported 0: No external charging Bit 8 1: Device is charging (only valid when bit 7 is 1) 0: Device is not charging Bit 9 1: Device is active (only valid when bit 3 is 1) 0: Device is stationary Bit 10 1: GPS module is running 0: GPS module is not running Bit 11 1: OBD module is running (only valid when OBD is supported) 0: OBD module is not running Bit 12 1: DIN0 is high level (only valid when DIN0 is supported) 0: DIN0 is low level Bit 13 1: DIN1 is high level (only valid when DIN1 is supported) 0: DIN1 is low level Bit 14 1: DIN2 is high level (only valid when DIN2 is supported) 0: DIN2 is low level Bit 15 1: DIN3 is high level (only valid when DIN3 is supported) 0: DIN3 is low level
pwr_int	Battery voltage	mV
ain0	AIN0 value	mV
ain1	AIN1 value	mV
mileage	Device mileage	m
gsm_counter	GSM counter from last GSM command	min
gps_counter	GPS counter from last GPS command	min
pdm_step	Accumulated steps today
pdm_time	Accumulated walking time today	sec
temp	Internal temperature (in (1/256)C)	C
humidity	Humidity (in (1/10)%)	%
illuminance	Illuminance (in (1/256)lx)	lx
co2	CO2 concentration	ppm
warning_type	Warning type
phone_number	Phone number
mess_content	Message content
pid_X	PID data
body_status	Body status: BYTE0: Door status BIT0: Left-front door (0: Closed 1: Open) BIT1: Right-front door (0: Closed 1: Open) BIT2: Left-back door (0: Closed 1: Open) BIT3: Right-back door (0: Closed 1: Open) BIT4: Luggage door (0: Closed 1: Open) BYTE1: Gear status 0x00: Not supported 0x50: Park 0x52: Reverse 0x4E: Neutral 0x44: Drive BYTE2: LED status BIT0: Engine LED (0: Closed 1: Open) BIT1: ABS LED (0: Closed 1: Open) BIT2: SRS LED (0: Closed 1: Open) BIT3: Brake LED (0: Normal/Released 1: Abnormal/Braking) BIT4: Central locking (0: Unlocked 1: Locked) BYTE3: Misc BIT0: ACC (0: Off 1: On) BIT1: Tire Pressure Monitor System (0: Normal 1:Abnormal) BIT2, BIT3: Remote key (00: No key is pressed 01: Unlock key is pressed 10: Lock key is pressed)
PX	Fault code
full_steps	Accumulated steps in total
full_time	Accumulated walking time in total	sec
full_distance	Accumulated walking distance in total	mm
full_energy	Accumulated burnt energy in total	cal
day_steps	Accumulated steps in last day
day_time	Accumulated walking time in last day	sec
day_distance	Accumulated walking distance in last day	mm
day_energy	Accumulated burnt energy in last day	cal
instr_pac	Instruction content
instr_type	Instruction type
instr_uid	Instruction UID
cmd_answer	Instruction content
language	Device language: 0x00 — Chinese; 0x01 — English; Other — Undefined
time_zone	Device timezone
sys_ver	System version
app_ver	Application version
ps_ver	Param-set version

Parameter name

Description

Units

report_type

1 - ACC On

2 - ACC Off

3 - DINx changed

mcc

Mobile country code

mnc

Mobile network code

lac

Location area code

cell_id

Cell tower ID

dev_status

Bit 0

1: GPS is fixed

0: GPS is not fixed

Bit 1

1: Device is designed for car

0: Device is not designed for car

Bit 2

1: Car engine is fired (only valid when bit 1 is 1)

0: Car engine is not fired

Bit 3

1: Accelerometer is supported

0: No accelerometer

Bit 4

1: The motion-warning is activated (only valid when bit 3 is 1)

0: The motion-warning is deactivated

Bit 5

1: Relay control is supported

0: No relay control

Bit 6

1: The relay control is triggered (only valid when bit 5 is 1)

0: The relay control is not triggered

Bit 7

1: External charging is supported

0: No external charging

Bit 8

1: Device is charging (only valid when bit 7 is 1)

0: Device is not charging

Bit 9

1: Device is active (only valid when bit 3 is 1)

0: Device is stationary

Bit 10

1: GPS module is running

0: GPS module is not running

Bit 11

1: OBD module is running (only valid when OBD is

supported)

0: OBD module is not running

Bit 12

1: DIN0 is high level (only valid when DIN0 is supported)

0: DIN0 is low level

Bit 13

1: DIN1 is high level (only valid when DIN1 is supported)

0: DIN1 is low level

Bit 14

1: DIN2 is high level (only valid when DIN2 is supported)

0: DIN2 is low level

Bit 15

1: DIN3 is high level (only valid when DIN3 is supported)

0: DIN3 is low level

pwr_int

Battery voltage

ain0

AIN0 value

ain1

AIN1 value

mileage

Device mileage

gsm_counter

GSM counter from last GSM command

min

gps_counter

GPS counter from last GPS command

min

pdm_step

Accumulated steps today

pdm_time

Accumulated walking time today

sec

temp

Internal temperature (in (1/256)C)

humidity

Humidity (in (1/10)%)

illuminance

Illuminance (in (1/256)lx)

co2

CO2 concentration

ppm

warning_type

Warning type

phone_number

Phone number

mess_content

Message content

pid_X

PID data

body_status

Body status:
BYTE0: Door status

BIT0: Left-front door (0: Closed 1: Open)
BIT1: Right-front door (0: Closed 1: Open)
BIT2: Left-back door (0: Closed 1: Open)
BIT3: Right-back door (0: Closed 1: Open)
BIT4: Luggage door (0: Closed 1: Open)

BYTE1: Gear status

0x00: Not supported
0x50: Park
0x52: Reverse
0x4E: Neutral
0x44: Drive

BYTE2: LED status

BIT0: Engine LED (0: Closed 1: Open)
BIT1: ABS LED (0: Closed 1: Open)
BIT2: SRS LED (0: Closed 1: Open)
BIT3: Brake LED (0: Normal/Released 1: Abnormal/Braking)
BIT4: Central locking (0: Unlocked 1: Locked)

BYTE3: Misc

BIT0: ACC (0: Off 1: On)
BIT1: Tire Pressure Monitor System (0: Normal 1:Abnormal)
BIT2, BIT3: Remote key (00: No key is pressed 01: Unlock key is pressed 10: Lock key is pressed)

Fault code

full_steps

Accumulated steps in total

full_time

Accumulated walking time in total

sec

full_distance

Accumulated walking distance in total

full_energy

Accumulated burnt energy in total

cal

day_steps

Accumulated steps in last day

day_time

Accumulated walking time in last day

sec

day_distance

Accumulated walking distance in last day

day_energy

Accumulated burnt energy in last day

cal

instr_pac

Instruction content

instr_type

Instruction type

instr_uid

Instruction UID

cmd_answer

Instruction content

language

Device language: 0x00 — Chinese; 0x01 — English; Other — Undefined

time_zone

Device timezone

sys_ver

System version

app_ver

Application version

ps_ver

Param-set version
