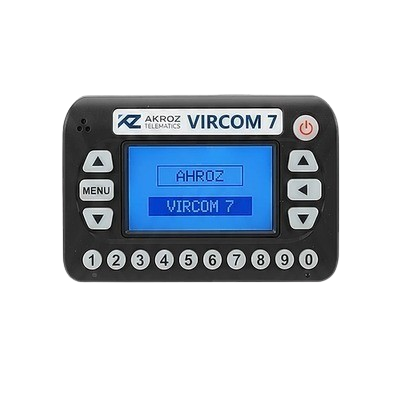

GPS tracker VIRCOM 07 | Integrated with Wialon

Features VIRCOM 07:

4G/LTE
Blackbox

Supported in Wialon:

Driver identification

The following data should also be added to VIRCOM 07 unit properties section of Wialon GPS tracking software :

Device type:	VIRCOM 07
Unique ID:	custom

Specify the following parameters in configuration software or configuration VIRCOM 07 for use in Wialon Hosting :

Server port:

23004

1 units of VIRCOM 07 device type are connected to Wialon Data Center. This represents 0% of all AVL Hardware connected.

Below chart represents the dynamic of connections in the last 30 days:

Parameter name	Description	Units
seq_num	Sequential message number
event_number	Number of the event that triggered the report Event number: Description 100: Ignition turned on 101: Ignition turned off 102: Periodic tracking with ignition on 103: Periodic tracking with ignition off 104: Event start: Overspeed 105: Event end: Overspeed 106: Event start: Overspeed under rain 107: Event end: Overspeed under rain 108: End of Trip 109: Event start: RPM exceeded 110: Event end: RPM exceeded 111: Event start: Idling (engine on without motion) 112: Event end: Idling (engine on without motion) 113: Event start: Excessive clutch use 114: Event end: Excessive clutch use 115: Event start: Motion while in neutral gear 116: Event end: Motion while in neutral gear 117: Login: Authorized driver 118: Login: Unauthorized driver 119: High temperature 120: Harsh acceleration 121: Harsh braking 122: Harsh cornering 127: Main power disconnected 128: Main power connected/reconnected 129: Backup battey in low voltage level 130: Backup battey voltage level normalized 131: Entering on sleep mode 132: Exiting sleep mode 150: Ignition turned on 151: Ignition turned off 152: Periodic tracking with ignition on 153: Periodic tracking with ignition off 154: Connected/reconnected to the server
protocol_ident	Identifier of the protocol
serial_number	VIRLOC’s serial number
fw_version	VIRLOC’s firmware version
board_version	VIRLOC’s board version
can_version	Script version [V1.2_CAN \| V1.2_PUL] In the CAN version, telemetry data are read from the vehicle’s CANBUS (with J1939 FMS standard protocol) In the PUL version, telemetry data are read from pulse inputs
serial_peripheral	Serial peripheral selected for driver identification [KNOV8 \| KNOV9 \| SGTECL \| SGRFID \| IBUTTON \| -] KNOV8 = Knov keyboard or RFID reader in mode 8; KNOV9 = Knov keyboard or reader in mode 9; SGTECL = SG Bras keyboard; SGRFID = SG Bras RFID reader; IBUTTON = iButton; - = Disabled;
overspeed_flag	Overspeed under rain [0 = disabled \| 1 = enabled] Maximum speed in the overspeed event (updated with the events 105 and 107) [km/h]
trip_timer	Trip timer source [0 = RPM \| 1 = Ignition]
drv_behavior	Driver behavior event source [0 = speed variation\| 1 = G-sensor]
sim_iccid	SimCard’s ICCID
last_valid_pos	Seconds since last valid position	Seconds
pwr_int	Backup battery voltage	Voltage
pwr_ext	Main Power voltage (vehicle’s battery)	Voltage
rpm_flag	Maximum rotation in the RPM exceeded event (updated with the event 110) [RPM]
odometer	Vehicle’s odometer	meters
engine_rpm	Engine rotation	RPM
engine_tmp	Engine temperature	°C
engine_oil_press	Engine oil pressure	KPa
fuel_level	Fuel level	%
connection_status	Connection status [1 = online \| 0 = offline]
network_band	Network band [4G:0 = connected in GSM service \| 4G:1 = connected in LTE Cat-M1 service]
driver_id	Driver’s ID [from RFID or iButton].
rpm_tm_#	Time of RPM within range 1-5	Seconds
engine_braking_tm	Time with engine braking activated	Seconds
trip_tm	Trip time	Minutes
distance_traveled	Distance traveled	Meters
fuel_consumed	Fuel consumed	mL
accel_pos	Accelerator pedal position	%
operation_total_tm	Vehicle’s total time in operation	Minutes
report	Name of the report

Parameter name

Description

Units

seq_num

Sequential message number

event_number

Number of the event that triggered the report

Event number: Description

100: Ignition turned on
101: Ignition turned off
102: Periodic tracking with ignition on
103: Periodic tracking with ignition off
104: Event start: Overspeed
105: Event end: Overspeed
106: Event start: Overspeed under rain
107: Event end: Overspeed under rain
108: End of Trip
109: Event start: RPM exceeded
110: Event end: RPM exceeded
111: Event start: Idling (engine on without motion)
112: Event end: Idling (engine on without motion)
113: Event start: Excessive clutch use
114: Event end: Excessive clutch use
115: Event start: Motion while in neutral gear
116: Event end: Motion while in neutral gear
117: Login: Authorized driver
118: Login: Unauthorized driver
119: High temperature
120: Harsh acceleration
121: Harsh braking
122: Harsh cornering
127: Main power disconnected
128: Main power connected/reconnected
129: Backup battey in low voltage level
130: Backup battey voltage level normalized
131: Entering on sleep mode 132: Exiting sleep mode
150: Ignition turned on
151: Ignition turned off
152: Periodic tracking with ignition on
153: Periodic tracking with ignition off
154: Connected/reconnected to the server

protocol_ident

Identifier of the protocol

serial_number

VIRLOC’s serial number

fw_version

VIRLOC’s firmware version

board_version

VIRLOC’s board version

can_version

Script version [V1.2_CAN | V1.2_PUL]

In the CAN version, telemetry data are read from the vehicle’s CANBUS (with J1939 FMS standard protocol)
In the PUL version, telemetry data are read from pulse inputs

serial_peripheral

KNOV8 = Knov keyboard or RFID reader in mode 8;
KNOV9 = Knov keyboard or reader in mode 9;
SGTECL = SG Bras keyboard;
SGRFID = SG Bras RFID reader;
IBUTTON = iButton;
- = Disabled;

overspeed_flag

Overspeed under rain [0 = disabled | 1 = enabled]

Maximum speed in the overspeed event (updated with the events 105 and 107) [km/h]

trip_timer

Trip timer source [0 = RPM | 1 = Ignition]

drv_behavior

Driver behavior event source [0 = speed variation| 1 = G-sensor]

sim_iccid

SimCard’s ICCID

last_valid_pos

Seconds since last valid position

Seconds

pwr_int

Backup battery voltage

Voltage

pwr_ext

Main Power voltage (vehicle’s battery)

Voltage

rpm_flag

Maximum rotation in the RPM exceeded event (updated with the event 110) [RPM]

odometer

Vehicle’s odometer

meters

engine_rpm

Engine rotation

RPM

engine_tmp

Engine temperature

°C

engine_oil_press

Engine oil pressure

KPa

fuel_level

Fuel level

connection_status

Connection status [1 = online | 0 = offline]

network_band

Network band [4G:0 = connected in GSM service | 4G:1 = connected in LTE Cat-M1 service]

driver_id

Driver’s ID [from RFID or iButton].

rpm_tm_#

Time of RPM within range 1-5

Seconds

engine_braking_tm

Time with engine braking activated

Seconds

trip_tm

Trip time

Minutes

distance_traveled

Distance traveled

Meters

fuel_consumed

Fuel consumed

accel_pos

Accelerator pedal position

operation_total_tm

Vehicle’s total time in operation

Minutes

report

Name of the report
