Wialon becoming a basis tire exploitation management

In transportation businesses, savings start with fuel monitoring. I bet you’ve already implemented fuel control module for all your clients. What’s next: optimizing mileage, enhancing driving quality, and eliminating unauthorized trips? It’s way simpler. Start with tire exploitation management being a material item for every fleet manager.

Tires don’t complete their term due to misuse. Outspent tires increase fuel consumption and accident rates. To avoid it, you should control pressure and temperature. Upon critical deviations, you’ll see flawed tires and take measures to slow down wear out and keep them serviceable.

Geoservice, the Gurtam partner from Russia, is well-experienced in working with tire pressure and temperature sensors in SaaS transportation management system Wialon Hosting. The company outputs the data in the unit tooltip and provides statistics on each tire in reports. But presenting information this way doesn’t suit everyone. For example, a large-scale project with Tyreman Group demanded the development of a special interface for handy data visualization.

A client and a project

Tyreman Group specializes in tire life-saving technologies and equips machinery in open casts and pits throughout Russia. To analyze tire exploitation conditions, they needed the telematics platform, but to visualize it, they requested a specialized interface created according to their specifications. Geoservice provides Wialon Hosting for the former and developed Tyres Admin app for the latter. Let’s see how it works.

The solution

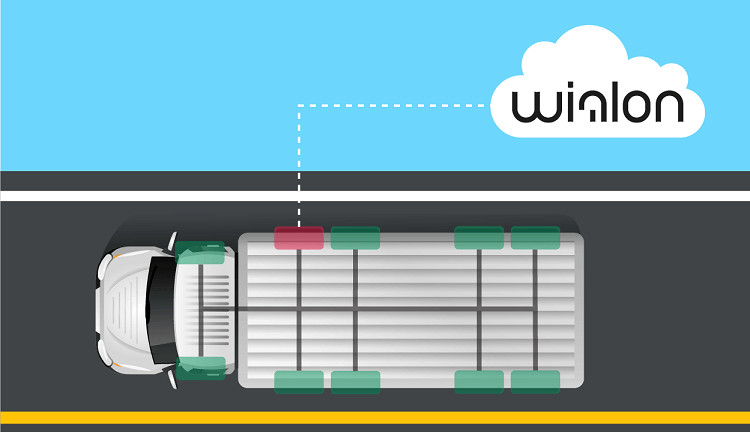

The company equips the machinery with tire pressure and temperature sensors by Pressure Pro. Wialon receives data from sensors through the monitor in the driver’s cab. The monitors are also used to control tire condition in real time. Wialon analyzes data and sends them to Tyres Admin interface for dispatchers. The solution comprises three tabs.

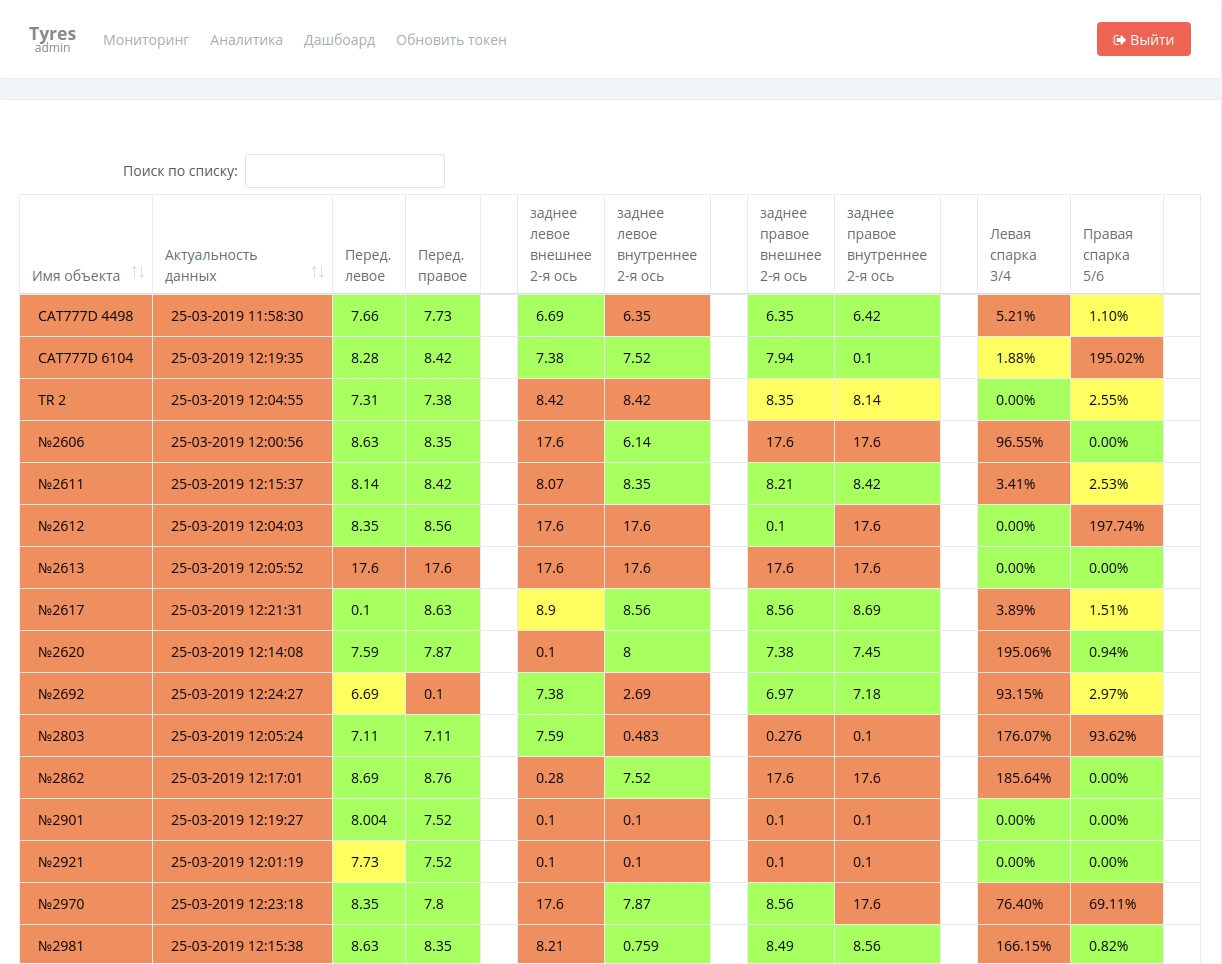

Monitoring

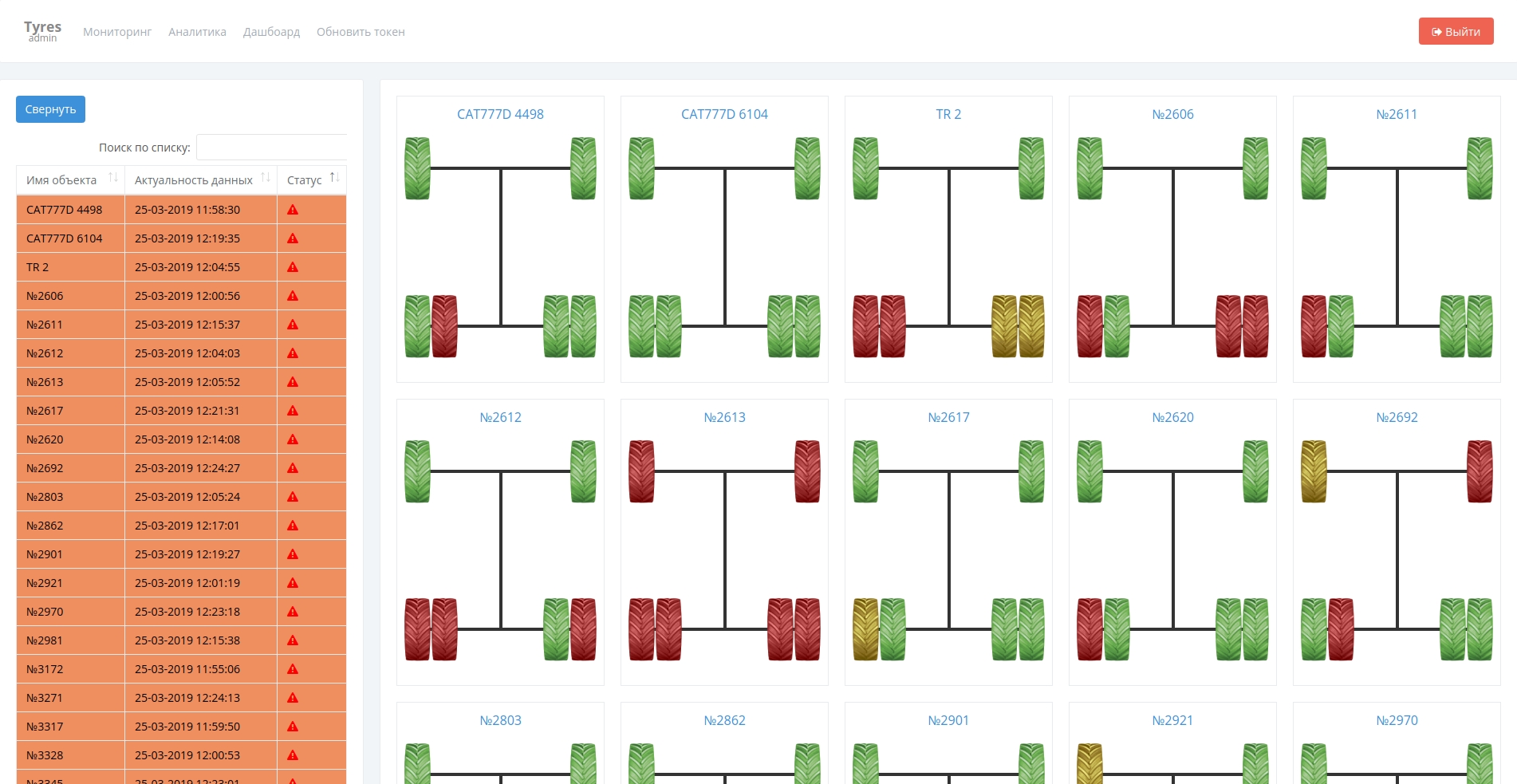

Here, the dispatcher sees tire condition by units in real time. The information is also displayed in tables and graphically as axle arrangements. In both cases, the system marks issues in yellow and red. Moreover, assets demanding dispatcher’s attention can be rearranged to the top of the table.

On this tab, the system also informs the dispatcher, if there’s a connection loss if sensors send tire pressure and temperature data.

Analytics

Here, technical specialists view tire temperature and pressure parameters for each wheel and perform a comparative analysis to avoid critical deviations.

What a big deal? When two tires on a single axle show different pressure values, it constantly damages one of them. In time, the driver can lose both tires.

Based on graphical axle arrangements technical specialists can get data on coupled wheels relative to others in percent.

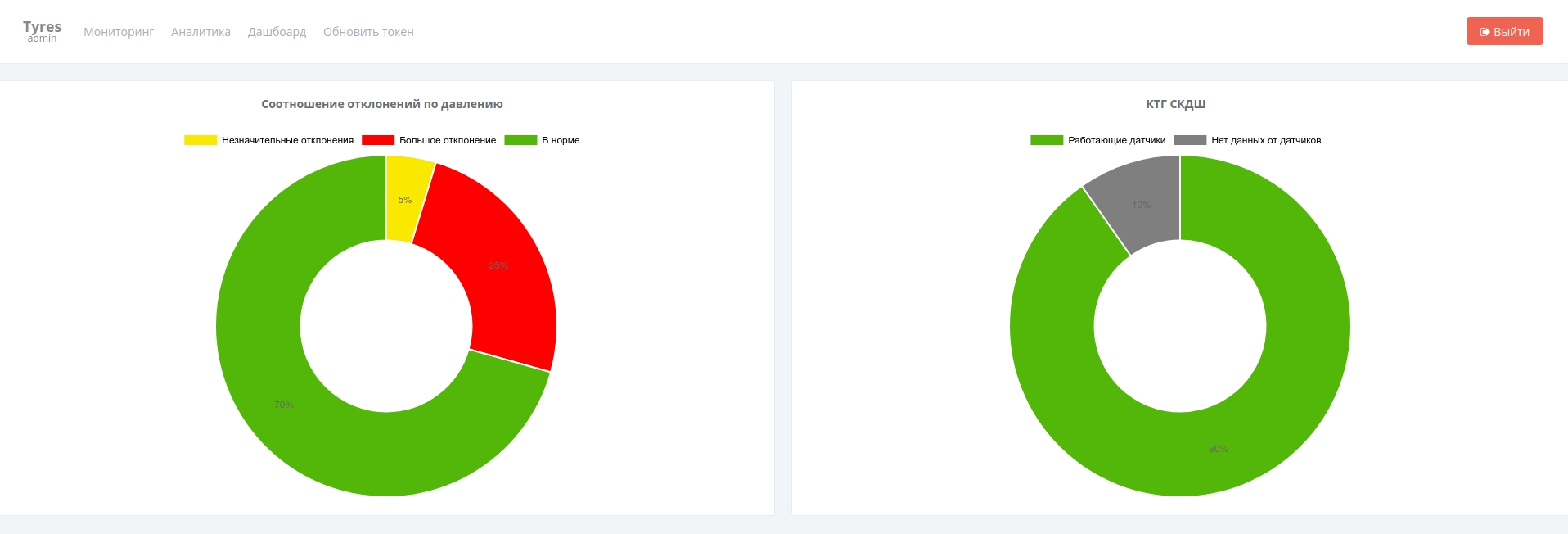

Dashboard

Here, the system displays two circle diagrams. The former shows tire condition across the whole fleet. The latter reveals the percentage of operative sensors.

The result

The company implemented the solution on one of the open casts serviced by Tyreman Group. Over the past six months, they achieved the following results.

1. Up to 30% – increased the operation time of each tire.
2. Up to 2-7% – decreased average fuel consumption.
3. Better maintainability index of damaged tires.
4. Idling time due to tire failures decreased.

I believe many of your clients achieve outstanding results with Wialon. Share the success stories with us on marketing@gurtam.com or leave a request for a blog post on my.gurtam.com.
