Asset GPS tracker PTS-2 | Integrated with Wialon

Supported in Wialon:

Communication via TCP

The following data should also be added to PTS-2 unit properties section of Wialon GPS tracking software :

Device type:	PTS-2
Unique ID:	custom

Specify the following parameters in configuration software or configuration PTS-2 for use in Wialon Hosting :

Server port:

22604

8 units of PTS-2 device type are connected to Wialon Data Center. This represents 0.01% of all Asset trackers connected.

Below chart represents the dynamic of connections in the last 30 days:

Parameter name	Description	Units
type	Packet type
date_time	Date and time of transaction start
pump	Logical number of the pump
nozzle	Nozzle number
fuel_grade_id	Identifier of fuel grade
fuel_grade_name	Name of fuel grade
transaction	Number of transaction
volume	Transaction volume
tc_volume	Transaction temperature-compensated volume
price	Product price
amount	Transaction money amount
total_volume	Volume total counter value
total_amount	Money amount total counter value
tag	Value of tag ID used to authorize the pump
user_id	Identifier of user, who authorized the transaction
configuration_id	Unique configuration identifier
tank	Logical number of the tank
fuel_grade_id	Identifier of fuel grade
fuel_grade_name	Name of fuel grade
status	Status of probe
alarm_N	Probe alarms for tank
product_height	Value of product height	mm
water_height	Value of water height	mm
product_volume	Value of product volume	L
water_volume	value of water volume	L
product_ullage	– value of product ullage	L
product_tc_volume	value of product temperature compensated volume	L
product_density	value of product density	kg/m3
product_mass	– value of product mass	kg
tank_filling_percentage	value of tank filling percentage	%
temp	Value of temperature	C
end_datetime	Date and time of last in-tank delivery end
pumps_dispensed_volume	Value of product volume dispensed through pumps during delivery	L
gps_mode	– operation mode (string), possible values: ‘A’ (for Autonomous) and ‘D' (for DGPS)
device_type	Strings indicating device type,
device_number	Number of device, to which the alert relate
state	Strings indicating alert state
code	alert code
fw_datetime	Firmware release date and time
pts_startup_sec	Number of seconds after the controller started operation
pwr_int	value of battery voltage	V
cpu_temp	value of CPU temperature
is_pwr_down	flag showing if controller power down is detected
_nozzle_up_N	pumps’ nozzle numbers taken up on pumps
_last_nozzle_N	n last pumps’ transaction nozzles
_last_transaction_N	last pumps’ transaction numbers
_last_volume_N	last pumps’ transaction dispensed volumes
_last_amount_N	last pumps’ transaction dispensed amounts
_last_price_N	last pumps’ transaction product price
_request_N	presently executed requests on pumps

PTS-2 forecourt controller is a powerful modern forecourt controller for provision of control over forecourt equipment of petrol stations, petroleum storage depots and fuel delivery trucks:

petroleum, LPG and CNG dispensers
automatic tank gauge systems and probes
price signs
RFID readers
AVI systems

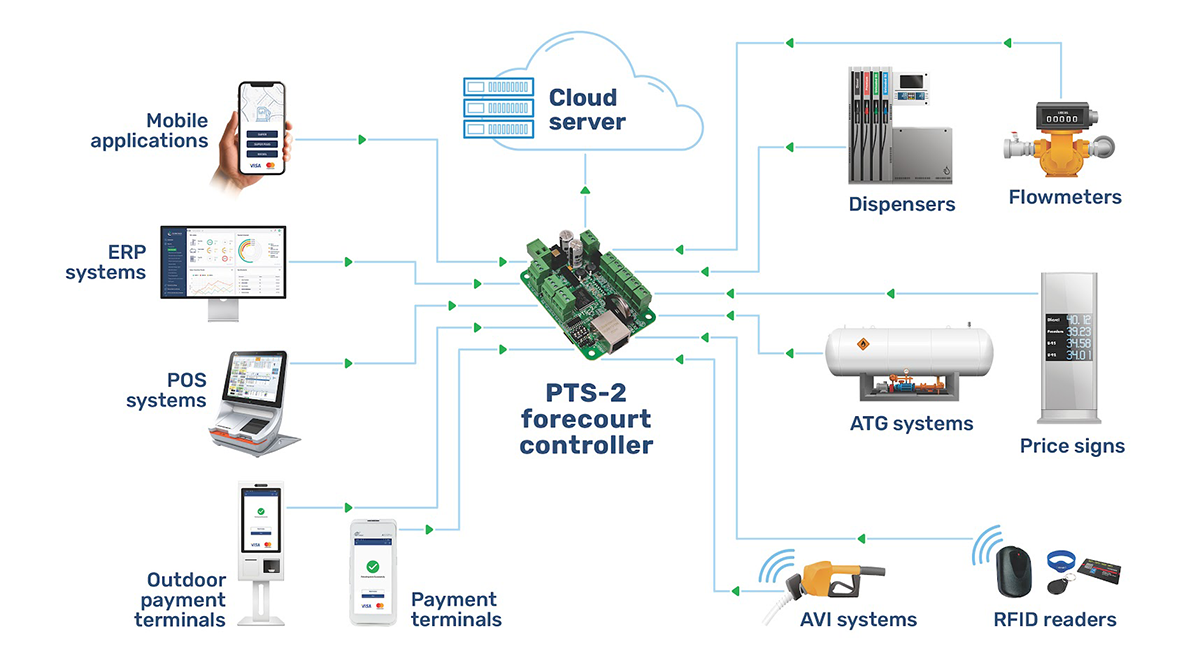

PTS-2 forecourt controller general scheme
